The electric catfish (Malapterurus electricus), belonging to the family Malapteruridae, order Siluriformes (Actinopterygii: Ostariophysi), is one of the six branches that has independently evolved electrical organs. We assembled a 796.75 Mb M. electricus genome and anchored 88.72% sequences into 28 chromosomes. Gene family analysis revealed 295 expanded gene families that were enriched on functions related to glutamate receptors. Convergent evolutionary analyses of electric organs among different lineage of electric fishes further revealed that the coding gene of rho guanine nucleotide exchange factor 4-like (arhgef4), which is associated with G-protein coupled receptor (GPCR) signaling pathway, underwent adaptive parallel evolution. Gene identification suggests visual degradation in catfishes, and an important role for taste in environmental adaptation. Our findings fill in the genomic data for a branch of electric fish and provide a relevant genetic basis for the adaptive evolution of Siluriformes.
Catfish, belonging to the ray-finned fish order Siluriformes, are a diverse group of fishes that occupy various habitats and are found worldwide. With 4110 species, 498 genera, and 39 families, they make up 11.34% of all extant fishes (Fricke et al. 2021). These nocturnal creatures rely on non-visual senses, such as touch, chemically sensitive tentacles, or enlarged olfactory organs, to navigate their environments (Lundberg and Friel. 2003). Electric catfish, which are benthic and live in turbid waters, feed on benthic insects (Fagbenro et al. 2001). Compared to other sensors such as those related to taste (Bauer 1968), Malapterurus electricus has only a small, incomplete visual system (Ebbesson and Donnel 1980). Despite their large species number, only 22 catfish genomes are available at NCBI Genomes (Kitts et al. 2016). Here, we considered the Malapteruridae, a family where all 21 species have evolved electric organs (Fricke et al. 2021). We generated a chromosome-level genome assembly of M. electricus, an archetypical electric catfish species that possesses electric organs for predation and defense (Janetzko et al. 1987; Schikorski et al. 1992).
Through this analysis, we have revealed aspects of the genome and the chromosome evolution of electric catfishes, considered the phylogeny and the demographic history of M. electricus, and identified single genes and families of genes that may be associated with the evolution of electric organs. To explore environmental adaptations with electric catfish, we also identify and comparatively analyze visual and taste genes. Our findings may benefit future basic studies and conservation efforts of this species for further genetic and evolutionary studies of Siluriformes fish.
Materials and methods
DNA sample preparation and library construction
High-quality DNA for sequencing was extracted from muscle tissue using a modified DNA extraction for vertebrate tissues protocol from the tissue sample. The extracted DNA was fragmented and subjected to paired-end sequencing library construction, following single tube Long Fragment Read (stLFR) protocol (Wang et al. 2019). For Hi-C library sequencing, ~ 1 g of living muscle tissue was used for DNA extraction and library contraction, according to the method described by (Wang et al. 2019).
Genome sequencing and assembly
Sequencing was conducted on a BGISEQ-500 sequencer, generating 118.87 Gb stLFR raw data and 307.07 Gb raw Hi-C data (Supplementary Table S1). Data filtering was then carried out using SOAPnuke software (version 1.5) (Chen et al. 2018) with the default parameters. After data filtering, 63.65 Gb of data remained for de novo assembly (the ‘clean Hi-C data’ contained 143.83 Gb). The clean reads were then pre-processed to be compatibly handled by supernova v2.0.2 (Wong et al. 2018), following the stLFR2Supernova pipeline (https://github.com/BGI-Qingdao/stlfr2supernova_pipeline). Then, Gapcloser 1.12 (Luo et al. 2012) with default parameters was used to fill gap (N) regions (Supplementary Table S2). The size of the M. electricus genome was estimated based on k-mer analysis (Liu et al. 2013).
The clean Hi-C data generated from Hi-C library were used to improve the connection integrity of the scaffolds (Supplementary Table S1). All valid pairs of reads were detected by mapping clean Hi-C reads to draft genome sequences using Hic-Pro v3.2 (Servant et al. 2015) and then aligned to the genome using Juicer v1.5 (Durand et al. 2016). The assembled fragments of DNA were ordered and oriented by 3D-DNA pipeline version 170123 (Dudchenko et al. 2017) based on the Juicer Hi-C contacts (“merged_nodups.txt” file). Juicebox Assembly Tools v 1.11.08 (Dudchenko et al. 2017) were used for manual review and refinement to identify and remove the remaining assembly errors.
To evaluate the completeness of our assembly, the BUSCO (University of Geneva Medical School and Swiss Institute of Bioinformatics, Geneva, Switzerland; version 3.03, RRID:SCR_015008) (Manni et al. 2021; Waterhouse et al. 2018) with ray-finned fishes (actinopterygii obd10) orthologues was used to evaluate the completeness of our assembly. To assess the heterozygosity and accuracy of the assembled genome, we carried out variant calling using bcftools-1.4 (Danecek et al. 2021). The quality and barcode-trimmed stLFR data was mapped to the assembly using BWA v. 0.7.12 (Li and Durbin 2009) with default parameters, and called the SNP variant using bcftools-1.4 (Danecek et al. 2021) (mpileup parameters: –Ou –C 30 –d 100; call parameters: –c –Ov).
Repeat annotation, gene prediction, and functional annotation
Repetitive elements in the M. electricus were identified using a combination of the de novo and homology-based approaches. A de novo repeat library was first construct by RepeatModeler (v1.0.11), then repeat elements were identified by RepeatMasker (v4.0.7) (Tarailo-Graovac and Chen 2009) based on the RepBase 21.01 (Bao et al. 2015) library and the de novo repeat database. Repeats on protein level were annotated by the RepeatProteinMask package in RepeatMasker based on the TE protein database, and tandem repeats were annotated by the Tandem Repeat Finder (TRF, v4.0.9) (Benson 1999). Finally, non-redundant repeats were checked according to their alignments in the genome.
We used de novo, homology-based and RNA seq data to identify protein-coding genes. After repeat masking, de novo prediction was performed using AUGUSTUS 3.0.3 (Hoff and Stanke 2019; Stanke et al. 2006) with Danio rerio as the HMM model species. For homology-based annotation, six homolog species (Electrophorus electricus, Ictalurus punctatus, D. rerio, Lepisosteus oculatus, Takifugu rubripes (GCA_901000725.2), Rhincodon typus (GCA_001642345.2), Supplementary Table S3), and the actinopterygii_odb9 database were aligned against the genome assembly using BLAT software version 0.36 (Kent 2002) with E-value threshold of 1e-5. The best alignments were extended 2 Kb on the both sides; then the possible gene structures were predicted using GeneWise software version 2.4.1 (Birney et al. 2004) based on the sequences. For RNA seq data, SRA data download from Sequence Read Archive database (SRA, http://www.ncbi.nlm.nih.gov/sra, Supplementary Table S4) were clipped and trimmed using SOAPfilter (version 2.2) package from SOAPdenovo2 (Luo et al. 2012) to trim five bases at the 5’ end of all reads and to discard the quality value < 20 and those reads with N bases > 10. Then the filtered reads were mapped to the assembled genome using Tophat 2.1.2 (Kim et al. 2013) with default parameters; the BAM file obtained was used for transcriptome splicing by cufflinks 2.2.1 with default parameters.
Then GeneModelMapper pipeline v.1.6.1 (GeMoMa) (Keilwagen et al. 2019) was used to integrate the gene model prediction. The homolog- and de novo-based alignments of protein-coding genes and RNA seq mapping results above were used as GeMoMa input files. Extract RNA seq evidence (ERE) and DenoiseIntrons programs were used for refining and incorporating intron boundaries according to the mapped RNA-Seq data; and GeMoMa Annotation Filter (GAF) and AnnotationFinalizer programs were used to integrate all the evidence.
The protein sequences translated from the gene structure prediction results were compared to KEGG, GO, Swissprot, and Interpro databases. Functional annotation of protein-coding genes and transcripts was performed according to the best hit by BLASTp (v2.6.0+, E-value ≤ 1e−5) searching of the SwissProt and TrEMBL (Bairoch and Apweiler 2000) protein databases. Motifs and domains were annotated by searching the Pfam, PRINTS, PROSITE, ProDom, and SMART InterPro (v. 29.0) databases using InterProScan (v. 5.16 55.0) (Jones et al. 2014). The Gene Ontology term for each gene was annotated by Blast2GO (Götz et al. 2008). Additionally, gene sets were mapped to KEGG (v. 53) (Kanehisa and Goto 2000) pathways to identify the best match classification for each gene (BLASTp E-value ≤ 1e−5).
Reconstructed the ancestral chromosomes of Siluriformes
Genome and coding sequences of electric fishes and other related species were downloaded from the NCBI and ENSEMBL databases for a gene family analysis, including zebrafish (D. rerio, GCA_000002035.6), channel catfish [I. punctatus, GCA_001660625.2 (Liu et al. 2016b)], striped catfish [Pangasianodon hypophthalmus, GCA_009078355.1 (Kim et al. 2018)], Asian red-tailed catfish (Hemibagrus wyckioides, GCA_019097595.1), black bullhead catfish (Ameiurus melas, GCA_012411365.1), and Chinese large-mouth catfish [Silurus meridionalis, GCA_014805685.1 (Zheng et al. 2021)] (Supplementary Table S3). The predicted protein gene sets from M. electricus and six reference species were aligned using BLASTp (v2.6.0 +) with an E-value threshold of 1e−5, and the high-quality mapped genes were analyzed by OrthoMCL (v2.0.9) (Li et al. 2003) to define gene families. The proteins of single-copy orthologs gene families were aligned using MUSCLE (v3.8.31) (Edgar 2004), and four-fold degenerate synonymous sites (4D sites) were extracted from each alignment and concatenated to obtain a super gene for each species for phylogenetic tree construction using RAxML 8.2.4 (Stamatakis 2014). Masking was employed on M. electricus genome sequence to remove lineage-specific repetitive regions based on RepeatMasker and RepBase libraries by the RepeatMasker software suite. Then a whole-genome alignment between electric catfish assembly and the six species mentioned above was generated using LastZ (v1.1) (Harris 2007) with the parameter settings “T = 2 C = 2 H = 2000 Y = 3400 L = 6000 K = 2200”. After filtering the aligned blocks shorter than 2 Kb, the synteny between the two genomes was visualized by Circos (v0.69-6). Next, the pairwise alignment results were converted into the UCSC “chain” and “net” formats using the ChainNet algorithm (Kent et al. 2003). DESCHRAMBLER(Kim et al. 2017) was used for constructing chromosomes at 50 kb resolution. Then putative ancestors were inferred from orthologs maps by MGRA 2.2.1 (Avdeyev et al. 2016).
Whole-genome duplication analysis
MCscanX (Wang et al. 2012) was used to detect syntenic blocks (regions with at least five collinear genes) between M. electricus, E. electricus, and I. punctatus based on the all-to-all BLASTp (v2.6.0+, E-value ≤ 1e−10) results. Then the protein sequences of homologous gene pairs in the syntenic region were extracted and aligned using the MUSCLE (v3.8.31) program (Edgar 2004). Subsequently, the protein sequence alignments were converted into CDS files, and four-fold degenerate nucleotide sites that underwent transversions (4DTv distance) values of paralogous pairs within species and of orthologous pairs between species were calculated based on the CDS alignments, accompanying the correction of the HKY model (Hasegawa et al. 1985).
Expansion and contraction of gene family analysis
Genome and coding sequences of electric fishes and other related species were downloaded from the NCBI and ENSEMBL databases for a gene family analysis, including E. electricus, Paramormyrops kingsleyae, I. punctatus, P. hypophthalmus, D. rerio, Scleropages formosus, and L. oculatus. The predicted protein gene sets from M. electricus and these seven reference species were aligned using BLASTp (v2.6.0+) with an E-value threshold of 1e−5, and the high-quality mapped genes were analyzed by OrthoMCL (v2.0.9) (Li et al. 2003) to define gene families. The proteins of single-copy orthologs gene families were aligned using MUSCLE (v3.8.31) (Edgar 2004), and four-fold degenerate synonymous sites (4D sites) were extracted from each alignment and concatenated to obtain a super gene for each species for phylogenetic tree construction using RAxML 8.2.4 (Stamatakis 2014). We obtained divergent times for all pairs of species in the phylogenetic tree using r8s version 1.71 (Sanderson 2003). The r8s results were calibrated with the teleost fossil records accessed from TimeTree website (http://www.timetree.org/, calibration divergence times used were for species E. electricus and P. hypophthalmus: 165–117 Mya). With the calibrated results as input, the MCMCtree (v4.5) in the PAML (v4.8) (Yang 2007) package was used to estimate species divergence time. Next, CAFE (v 4.2.1) (Han et al. 2013) was carried out with default parameters to define the expansion and contraction of gene families. Gene families exhibiting expansion and contraction were mapped to GO terms for an enrichment analysis.
Detection of positively selected genes (PSGs)
To identify PSGs in M. electricus and the other three electric species, genes in COGs were extracted and then aligned using MUSCLE (v3.8.31) software (Edgar 2004). The Codeml package in the PAML (v4.8) (Yang 2007) was used to compute the dN/dS ratio of these alignments under branch site selection model, where the three electric species were designated as foreground branches. Only those genes were selected significantly positive which showed positive selection on the foreground branch, but negative or neutral selection on the background branch (using likelihood ratio test at a 5% significance level). These PSGs were further mapped to GO terms for an enrichment analysis.
Genomic convergence analysis
To detect genome-wide sequence convergence between electric lineages, we followed both ∆SSLS (Parker et al. 2013) method and CCS method (Xu et al. 2017). In the ∆SSLS method, the CDS of every COG was built and aligned as codons using MUSCLE (v3.8.31) (Edgar 2004); then any ambiguously aligned sites and codons with excessive numbers of gaps were removed from each gene alignment using GBlocks v.0.91b (Talavera and Castresana 2007). Following the method of Zou and Zhang (Zou and Zhang 2015), the phylogenetic tree based on single-copy gene generation was used as a species tree (hereafter termed H0, Supplementary Fig. S1A). Then a first hypothetical topology was generated in which the electric species were forcibly clustered into one group; this topology was used as H1 (Supplementary Fig. S1A). A second hypothetical topology was generated in which the two groups of electric taxa were not clustered but otherwise exhibited the same amount of phylogenetic distortion from H0 as does H1; this topology was used as H1′ (Supplementary Fig. S1A). To assess the alignment data relative to the H0, H1, and H1, we fitted the data using the Codeml program in the PAML (v4.8) (Yang 2007) package under the WAG + γ model with estimated amino acid frequencies to generate the site-wise log-likelihood support (SSLS). Then the comparison log-likelihood differences per site (∆L) was calculated, with significantly negative ∆LH0−H1 values (or ∆LH0−H1' values) indicating that the evolution of the protein favors H1 (or H1′) over H0 (Parker et al. 2013). The protein evolutionary tendency was considered significant (Kolmogorov–Smirnov test, P value < 0.05) only when the frequency distribution of ∆LH0-H1 did not overlap with that of ∆LH0−H1′ (Zou and Zhang 2015).
For the CCS method, ancestral protein sequences were first reconstructed for single-copy orthologs detected among eight species using the Codeml program in the PAML (v4.8) (Yang 2007) package. Observed convergent amino acid sites among M. electricus, E. electricus, and P. kingsleyae with rules as follow (Hu et al. 2017): (ⅰ) the amino acid residues of both the extant target lineages were identical; (ⅱ) amino acid change was inferred to have occurred between the extant target lineages and the most recent common ancestor (MRCA) of each two of them.
Concurrently, the expected number of these two substitutions between electric fish species and other species’ predicted MRCA was calculated under the JTT-fgenes amino acid substitution model (Jones et al. 1992). To filter out noise from chance amino acid substitutions (Thomas and Hahn 2015; Zou and Zhang 2015), Poisson's tests were performed on observations and estimates to verify significant differences (P value < 0.05). Finally, genes within both gene sets of non-random convergent (or parallel) genes and PSGs were inferred to have undergone adaptive convergence.
Opsin and taste receptor genes identification
With reference to Ding et al. (Ding et al. 2021), zebrafish opsin protein genes (opsin) were downloaded from ENSEMBL database (http://www.ensembl.org), including rhodopsin (rh1): ENSDARP00000011562; green-sensitive (rh2), ENSDARP00000001158, ENSDARP00000011837, ENSDARP00000001943, ENSDARP000000009794; short wavelength-sensitive 1 (sws1): ENSDARP00000067159; short wavelength-sensitive 2 (sws2): ENSDARP00000144766; long wavelength-sensitive (lws), including lws-1: ENSDARP00000065940, lws-2: ENSDARP00000149112. Three types of taste receptor genes (tr), including sour, sweet-umami and bitter taste receptor genes were downloaded from the Uniprot database (https://www.uniprot.org) (Supplementary Table S5).
Homology predictions of the gene sets above in the electric catfish and the closely related and zebrafish D. rerio, electric eel E. electricus, black bullhead catfish A. melas, Asian red-tailed catfish H. wyckioides, channel catfish I. punctatus (Liu et al. 2016b), striped catfish P. hypophthalmus (Kim et al. 2018), Chinese large-mouth catfish S. meridionalis (Zheng et al. 2021), elephantfish P. kingsleyae, Asian bonytongue S. formosus, and spotted gar L. oculatus were performed using BLAT software (version 0.36) (Kent 2002) against the reference protein sequences. The best alignments were extended 2Kb on the both sides, then the possible gene structures were predicted using GeneWise software (version 2.4.1) (Birney et al. 2004). Then predicted protein sequences were obtained and validated by comparing the protein sequences to the non-redundant (NR) [http://ftp.ncbi.nih.gov/blast/db/FASTA (accessed on 19 Feb 2016)] based on BLASTp E-values ≤ 1e−05.
Protein sequences were then aligned by the MAFFT (v7.237) (Katoh and Standley 2013) with auto module. Maximum likelihood (ML) trees were constructed using the RAxML 8.2.4 (Stamatakis 2014) with 1000 bootstraps. For taste receptor genes, identified pkd2l1 genes were used as outgroups. Subsequently the trees were visualized using FigTree (http://tree.bio.ed.ac.uk/software/figtree) and the Interactive Tree Of Life online website (iTOL, https://itol.embl.de) (Letunic and Bork 2021).
Estimates of effective population size
The demographic history of M. electricus was inferred PSMC method (Li and Durbin 2011). The quality and barcode-trimmed stLFR data was mapped to the assembly using BWA v. 0.7.12 (Li and Durbin 2009) with default parameters, then the SNP variants were called using bcftools-1.4 (Danecek et al. 2021) (mpileup parameters: –Ou –I –C 30 –d 100; call parameters: –c –Ov). The vcfutils.pl program of bcftools-1.4 (Danecek et al. 2021) was further applied to generate the diploid consensus sequences. Then the input file for PSMC modeling was generated with the program ‘fq2psmcfa’ (–q 20); then the population size history was inferred with the program ‘psmc’ (–N25 –t15 –r5 –p 4 + 25*2 + 4 + 6) in PSMC v. 0.6.5-r67 (Li and Durbin 2011). Bootstrapping was conducted by randomly sampling with replacement 5-Mb sequence segments during 100 bootstrap replicates. The generation time (g) was assumed to be two year, according to the equation “g = a + [s/(1 − s)]” (Liu et al. 2016b), where s is the expected adult survival rate which is roughly recorded as 0.5 (Goli Bi et al. 2019), and a is the sexual maturation age that is one year (https://www.fishbase.se/summary/Malapterurus-electricus). The reconstructed population history was then plotted, and the mutation rate per site per year was set at 3 × 10–9 estimated by r8s version 1.71 (Sanderson 2003), making the mutation rate per site per generation (g = 2) 6 × 10–9 (the μ value). We then used Sequential Markov Coalescent + Plenty of Unlabeled Samples (SMC++, v1.15.5) (Terhorst et al. 2017) to estimate fitted models to infer a more recent demographic history for M. electricus. The chromosome-wise vcf file generated in the previous step was continually converted to SMC input files using the vcf2smc module. Then SMC++ estimate model was run with a smooth spline model, 10 knots in internal and cross-validated 5 times (–folds 5, –spline cubic, –konts 10) with the same mutation rate (Terhorst et al. 2017). We finally plotted the data using the plot command with a generation time of two years.
Results
Genome assembly and annotation
We used 118.87 Gb (~ 82 ×) stLFR data of M. electricus, generated on the BGISEQ-500 platform (Supplementary Table S1), to obtain a preliminary genome assembly of 796.45 Mb with a scaffold N50 of 3.58 Mb (Table 1; Supplementary Table S2, S6). To further obtain the chromosome-level assembly, 311.10 Gb Hi-C data were used to anchor the initial assembly onto 28 chromosomes with a 796.75 Mb genome size (Fig. 1; Table 1; Supplementary Table S1, S7, S8). The heterozygosity rate of this genome was 0.043%, consistent with the k-mer estimate analysis (0.05%) (Supplementary Figs. S2, S3; Table S9, S10), and the assembly error ratio was 0.001%, with 98.68% of sequencing reads mapping ratio indicating a high-quality and intact assembly.
Table
1.
Assembly and annotation of the M. electricus genome
Figure
1.
Genomic landscape of M. electricus chromosomes. A, The representation of the chromosome scaffold assembly information of M. electricus. From outside to the inside ring: (Ⅰ) Physical map of 28 assembled chromosomes (Mb scale) numbered according to size. The scaffolds and gaps on each chromosome are shown in gray and white segments, respectively. (Ⅱ) GC content represented by percentage of G + C bases in 500 kb windows. (Ⅲ) Gene density represented by number of genes in 500 kb windows. (Ⅳ) Repeat density represented by proportion of genomic regions covered by repetitive sequences in 500 kb windows. (Ⅴ) Syntenic blocks are depicted by connected lines. B, Heatmap of interactions within and among chromosomes according to Hi-C analysis. Chromosomes size scaffolds are indicated by the red frames and numbered according to size. C, The collinear represents the collinear relationships between M. electricus and P. hypophthalmus
We identified nearly 264.1 Mb of repetitive sequences, representing 33.15% of the assembly (Table 1; Supplementary Fig. S4; Table S11, S12). DNA transposons were the most abundant, accounting for 19.52%, followed by long terminal repeat (LTR) retrotransposons (11.76%) (Table 1; Supplementary Table S11, S12). A total of 19,985 protein-coding genes were annotated, with an average gene length of 16,149.9 bp and an average of 9.06 exons (Supplementary Table S13), similar to published genomes (e.g., E. electricus and P. hypophthalmus; see Supplementary Table S14). The results show that 95.13% (19,011/19,985) of these genes had recorded functional descriptions in databases, such as SwissProt, KEGG, TrEMBL, and InterPro, accounting for 90.57%, 85.98%, 94.76%, and 91.49% of the total gene set, respectively (Supplementary Table S15).
Reconstruction of the ancestral Siluriformes karyotype
Using six chromosome-level Siluriformes fish genomes, including M. electricus, the channel catfish (I. punctatus), the striped catfish (P. hypophthalmus), the Asian red-tailed catfish (H. wyckioides), the black bullhead catfish (A. melas), the Chinese large-mouth catfish (S. meridionalis), and zebrafish (D. rerio) as the outgroup, we reconstructed the ancestral Siluriformes karyotype (Fig. 2). A total of 267 common shared homologous synteny blocks (HSBs) were identified at 50-kb resolution, covering 34.22%, 31.68%, 30.42%, 30.68%, 31.63%, and 32.85% of the M. electricus, P. hypophthalmus, H. wyckioides, A. melas, S. meridionalis, and I. punctatus genomes, respectively (Supplementary Table S16). Using these HSBs, 29 ancestral chromosomes were reconstructed for the last common ancestor (LCA) of all Siluriformes, while the LCA of P. hypophthalmus, A. melas, and I. punctatus has 30 ancestral chromosomes. Synteny analysis revealed that the assigned chromosomes of M. electricus (2n = 56) and P. hypophthalmus (2n = 60) are highly homologous (Fig. 1C), except for a fusion of the ancestral chromosomes in chromosome 1 of M. electricus and a fission of chromosome in the ancestor of P. hypophthalmus, A. melas, and I. punctatus.

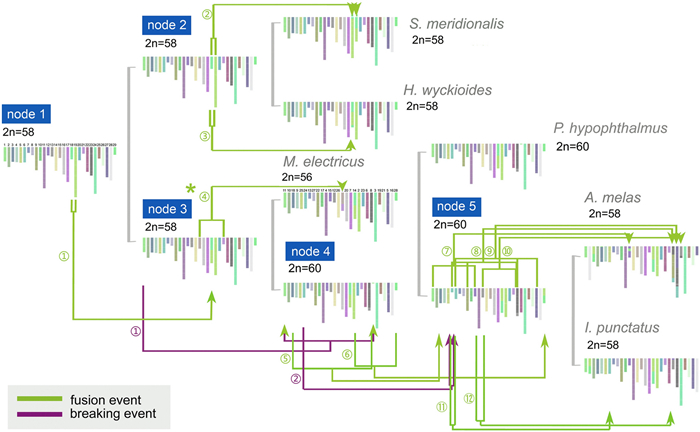

Figure
2.
Reconstruction of karyotype evolution in catfishes (order Siluriformes), including the karyotypes of six Siluriformes taxa (M. electricus, I. punctatus, P. hypophthalmus, H. wyckioides, A. melas, and S. meridionalis) as well as reconstructed ancestral karyotypes based on 267 shared homologous synteny blocks (HSBs). Each synteny block is represented using a line segment that is color-coded based on its position in the ancestral genome of all species. Chromosome fusion and breaking events are indicated by green and purple connecting lines, respectively. The green asterisk labels a major fusion event that occurred in M. electricus
Phylogenetic relationship and estimation of divergence time
To reveal the evolutionary history of electric fishes, we selected eight fish species to explore the origin–time of different electric fish species, including two strongly electric fishes (M. electricus and E. electricus), one weakly electric bony fish elephantnose fish (P. kingsleyae) and five non-electric fishes: striped catfish (P. hypophthalmus), channel catfish (I. punctatus), zebrafish (D. rerio), Asian bony tongue (S. formosus), and as an outgroup, the spotted gar (L. oculatus).
The phylogenetic relationship reconstructed from 4938 single-copy gene families of these species revealed that the electric M. electricus shared an ancestor with the non-electric I. punctatus and P. hypophthalmus ~ 30 million years ago (Mya) (Fig. 3A). We also investigated the 4DTv (the transversion rate at four-fold degenerate third-codon positions) distribution for gene pairs in syntenic blocks between M. electricus, I. punctatus, and E. electricus. Briefly, the peaks at approximately 0.90 support the teleost-specific genome duplication (TGD) event 320 Mya (Ravi and Venkatesh 2018) (Fig. 3B), while the peaks at ~ 0.51 indicate possible segment duplications in M. electricus and I. punctatus. Moreover, a speciation peak between M. electricus and I. punctatus at ~ 0.08 occurred after the speciation peak between M. electricus and E. electricus (~ 0.31) (Fig. 3B).

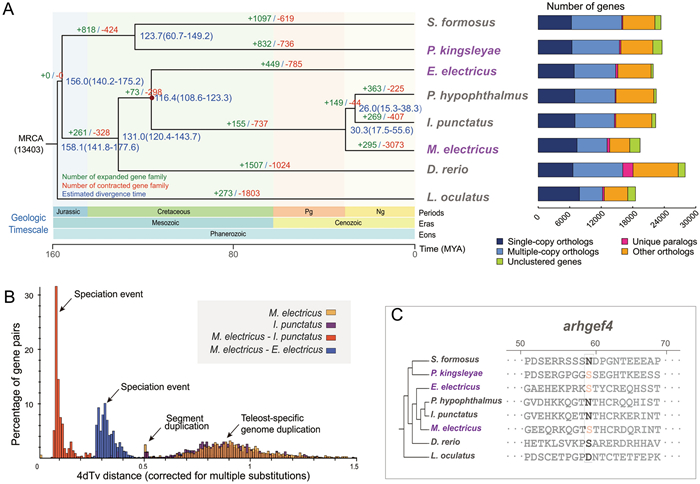

Figure
3.
Species divergence and evolution analysis of M. electricus. A, Gene family analysis. On the left is a phylogenetic tree constructed with single copy genes, with purple and gray species names indicating electric and non-electric classification, respectively. Numbers at the node positions represent the divergence time of each species in millions of years ago (Mya). The numbers in parentheses indicate the confidence interval of the divergence time, which can be used to estimate the divergence time of target species and other species. The red dots are the calibration time used to correct the time of species divergence, which were obtained from the Timetree website (http://www.timetree.org/). Green and red numbers represent the number of gene families that expanded and contracted during evolution, respectively. On the left is the summary of gene family analysis. Statistics of single-copy orthologs, multiple-copy orthologs, unique paralogs, other orthologs and unclustered gene numbers in E. electricus, P. kingsleyae, I. punctatus, P. hypophthalmus, D. rerio, and S. formosus, using L. oculatus as an outgroup. B, Distribution of the transversions on four-fold degenerate synonymous sites (4DTv) distances among paralogs for M. electricus, E. electricus, and I. punctatus. C, Sequence alignments of arhgef4 among electric and non-electric fish species. The box identifies the loci with convergent signals in the electric fish lineages
Gene family analysis on biological discharge of electric fishes
Using the gene sets of M. electricus and other two electric fish E. electricus and P. kingsleyae, and five related non-electric fish I. punctatus, P. hypophthalmus, D. rerio, S. formosus and L. oculatus, we identified a total of 13,016 gene families, among which 139 were specific to M. electricus, containing 348 genes (Supplementary Table S17). These 348 M. electricus-specific genes may be closely associated with the unique traits and characteristics of this species, suggesting potential genetic adaptations and evolutionary processes that contribute to the distinct features of M. electricus. We found functional enrichments in these specific gene families, including ATPase inhibitor activity (GO:0042030), alpha-1,6-mannosylglycoprotein 6-beta-N-acetylglucosaminyltransferase activity (GO:0030144), syntaxin binding (GO:0019905), voltage-gated anion channel activity (GO:0008308), and DNA-dependent ATPase activity (GO:0008094) (Supplementary Table S18). Additionally, we identified 295 significantly expanded gene families in M. electricus (P value < 0.05), enriched for ionotropic glutamate receptor activity, extracellular glutamate-gated ion channel activity, magnesium ion binding, and transferase activity (Supplementary Table S19).
To further explore the genetic mechanism of bioelectrogenesis in electric fish, we identified 256 positively selected genes (PSGs) in three electric fishes (reported by Moreno-Hagelsieb and Latimer 2007), using five non-electric fishes as the background (Supplementary Table S20). Among these 256 PSGs, 12 PSGs contained the parallel amino acid (AA) mutation sites in the three electric fish species (M. electricus, E. electricus, and P. kingsleyae) detected by the conserved convergent signal (CCS) method (Xu et al. 2017). The encoding gene for a rho guanine nucleotide exchange factor 4-like protein, arhgef4 was expressed in electric organs (EOs), with the expression of 1.41 fragments per kilobase of transcript per million fragments mapped (FPKM) (Fig. 3C).
The visual and chemosensory gene repertoire of catfishes
To investigate the evolution of vision- and taste-related gene families in electric catfish, we collected ten opsin sequences and 24 taste receptor genes to identify orthologous genes in electric catfish and other closely related species (Supplementary Table S3). A total of 56 opsin sequences were annotated, including 21 rh1, 12 rh2, three sws1, five sws2, and 15 lws (Fig. 4A). Phylogenetic analysis revealed two major branches of opsin genes: rod opsin (rh1) and cone opsin (rh2, lws, sws1, and sws2). One single-exon rh1 and one rh1 with five exons (exrho) were found in all catfishes (M. electricus, I. punctatus, P. hypophthalmus, H. wyckioides, A. melas, and S. meridionalis), electric eels, bony tongues (P. kingsleyae and S. formosus), and spotted gar (L. oculatus), and clustered into two branches (Fig. 4A). Only one lws gene was found in catfishes and electric eel, neither of which had sws1 or sws2. In addition to vision genes, we identified 48 taste receptors in the genome of electric catfish, including four pkd2l1, six t1r1, nine t1r2, six t1r3, and 23 t2r (Fig. 4B). Phylogenetic analysis showed that the genes clustered into two large branches, t1r and t2r, with the t1r branch first dividing into t1r3 followed by the t1r1 and t1r2 branches. All three t1r genes were found in all catfish, except for the large-mouth catfish S. meridionalis and the channel catfish, which lack t1r1, and the Asian red-tailed catfish H. wyckioides, which lacks t1r2; t1r3 and t2r, were not found in the electric eel genome.

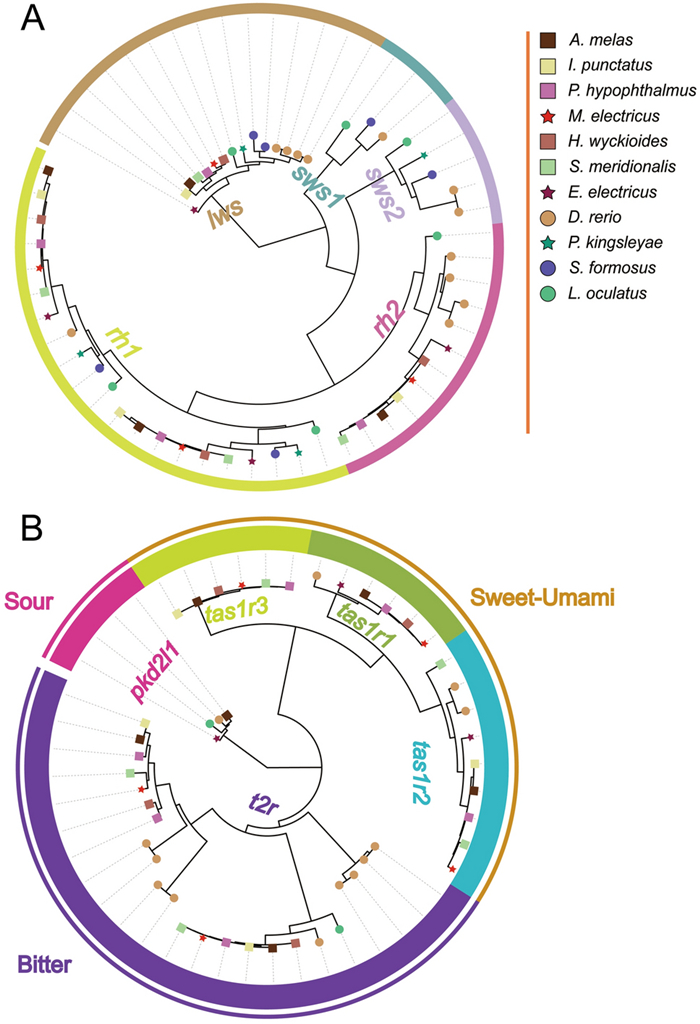

Figure
4.
Maximum likelihood (ML) tree of two gene families related to the electric feature. A, ML tree of the opsin gene identified form 11 fishes. B, ML tree of the taste receptor (TR) gene identified from 11 fishes, with pkd2l1 sequences identified used as outgroups. The 11 species are indicated by different node decorations
We inferred the demographic history of M. electricus by the pairwise sequentially Markovian coalescent (PSMC) (Li and Durbin 2011) as well as the SMC++ (Terhorst et al. 2017) (Fig. 5; Supplementary Fig. S5). Our data revealed distinct demographic trends from ~ 500,000 to 10,000 years ago, in which a bottleneck was shown ~70,000–100,000 years ago with a minimum of ~10,000 individuals, followed by an immediate expansion of population size that peaked between 10,000 and 20,000 years ago with ~ 70,000 individuals (Fig. 5). The SMC++ result also suggests a bottleneck ~ 70,000–100,000 years ago and a recent (< 50,000 years ago) population expansion (Supplementary Fig. S5).

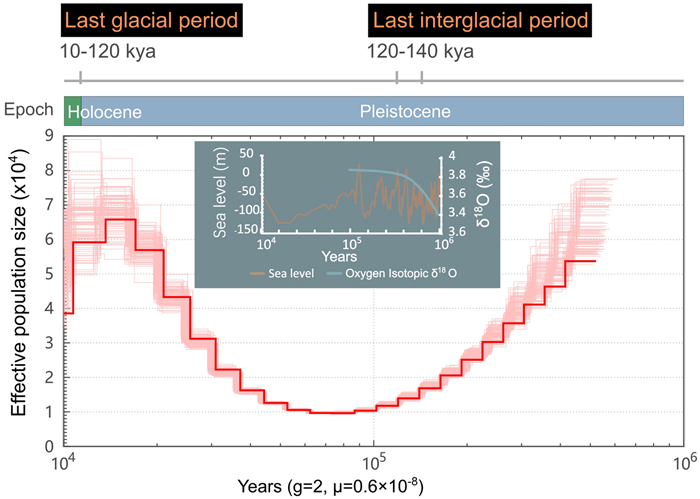

Figure
5.
Inferred historical effective population size of M. electricus revealed by PSMC analysis. The inferred population size is shown as a bold red line, surrounded by pink lines that shows the population size estimate generated after 100 rounds of bootstrapping. The bar above shows the last two geological periods: the early Holocene (~ 8000–11,650 years ago) and the late Pleistocene (~ 12,000–2,480,000 years ago); line segments show the last glacial period (~ 11,700–120,000 years ago) and the last interglacial period (~ 116,000–129,000 years ago). The global climate folding line graph (sea level and oxygen isotope δ18 content) is from Miller et al. (2005)
Here, we have reported a chromosome-level genome of M. electricus, resulting in a complete genome assembly and comprehensive annotation. The genome size and the GC content of the M. electricus genome were similar to those of catfish species and had good collinearity with the neighboring species P. hypophthalmus. The number of coding genes was similar to other Siluriformes species. This newly assembled chromosome-level genome assembly will not only help to understand the genetic basis of electric discharge but also facilitate the exploration of the mechanisms underlying other physiological processes and the evolution of electric fish. The current assembly result of our study provides a solid foundation for further genetic and evolutionary research on M. electricus. However, given the complexity of the M. electricus genome, the current assembly still requires further improvement using updated sequencing technologies, such as long-read sequencing generated by third-generation sequencing technologies. These advanced sequencing techniques and assembly strategies will provide valuable insights into the structure and function of the M. electricus genome, furthering our understanding of its biology and evolution.
Variations in karyotypes in Siluriformes species
The teleost ancestor had 24 or 25 chromosomes (Nakatani and McLysaght 2017; Naruse et al. 2004), followed by a series of genome-wide replications, chromosome fissions/fusions, deletions, and rearrangements (Kasahara et al. 2007; Parey et al. 2022; Ravi and Venkatesh 2018; Woods et al. 2005; Zhu et al. 2022). In Siluriformes, an ancestral karyotype is 2n = 58 (LeGrande 1981) and varied roughly between 2n = 24 and 2n = 60 (see Supplementary Table S21). Since karyotypes of S. meridionalis and H. wyckioides and their LCA with M. electricus were all 2n = 58, we suggest that a major fusion event caused M. electricus to exhibit a 2n = 56 karyotype. This suggests that there were changes in the number of chromosomes present in the genome of Siluriformes over time.
Gene arhgef4 relates to convergent evolution of electric organ
The expanded gene families in M. electricus, whose functions are enriched on glutamate receptor activity, emphasize their close correlation with their biological discharge functions. Previous studies have shown significant enrichment of overexpressed genes involved in ionotropic glutamate receptor activity and extracellular glutamate-gated ion channel activity pathways in the brain and spinal cord of electric eels (Traeger et al. 2015), as well as differentially expressed genes in the electrical organ (EO) of three African weakly electric fish when compared to the skeletal muscle (SM) dataset (Lamanna et al. 2015).
Previous studies have shown that tree-based ΔSSLS method produce false positives in detecting convergence on whole-genome data (Thomas and Hahn 2015; Xu et al. 2020; Zou and Zhang 2015). In many cases, critical but small-scale amino acid convergent changes within protein sequences may not be strongly represented in the overall gene tree. Furthermore, this method cannot clarify whether the convergence of these proteins occurred independently as a result of the electric organ discharge function in different species. In our study, we used the CCS method (Xu et al. 2017) for identifying convergent evolution at the amino acid level. With this approach, we identified a positively selected gene, arhgef4, with one convergent amino acid site. The arhgef gene family, involved in signal transduction through the GPCR signaling pathway, has been shown to be up-regulated in EOs compared to SMs (Gallant and O’Connell 2020; Gallant et al. 2014; Lamanna et al. 2015). A key step in biological electrogenesis is the degradation of the excitatory–contraction pathway, which prevents organs from twitching during discharge (Gallant et al. 2014; Zakon et al. 2006). In hepatic stellate cells, the human homolog of arhgef4 mediates the reorganization of the actin cytoskeleton and plays a role in the expression of morphological genes (Zhang et al. 2019). Hippocampal neuronal cultures from Arhgef4 (the mice homolog of arhgef4) KO mice show that the protein acts as a negative regulator in excitatory synapses (Yoo et al. 2020). Therefore, arhgef genes with convergent signaling may play a role in the biological electrogenesis and self-protection of electric fish organs.
Visual and taste depictions of environmental adaptation in Siluriformes
The sws1 and sws2 genes are primarily responsible for short-wave sensitive vision, and short-wave light penetrates weakly in turbid water (Enright et al. 2015; Lin et al. 2017). As we report, the two short-wavelength-sensitive cone opsin genes were presumed lost in nocturnally active gymnotiforms and catfish (Liu et al. 2016a), possibly indicating that their shortwave vision is degraded by the ecological niche of turbid water (Fagbenro et al. 2001). All of the catfish species we examined had at least two t1rs, suggesting the taxon may have a highly developed sense of taste, which is consistent with behavioral findings (Bauer 1968). In contrast, the loss of some taste genes may be due to narrow feeding habits or species-specific feeding patterns that render taste unimportant (Feng et al. 2014; Zhao et al. 2010, 2012). As in catfish with other transduction pathways for bitter taste that do not depend on t2r, the taste response to L-arginine (a bitter substance) is mediated by a non-selective cation channel (Bigiani et al. 2003; Kumazawa et al. 1998; Shi and Zhang 2006), which may lead to reduced or absent copies of t2r.
Global geological events affect historical effective population size of M. electricus
Effective population size (Ne) is a central concept in evolutionary theory and is essential for understanding changes in gene frequencies in finite populations (Lee et al. 2020). It is possible to reconstruct the population size history of species based on the genome sequences of representatives of present-day species (Mather et al. 2020). Global glacial oscillations during the Pleistocene over the past 1.1 million years may have led to oscillatory changes in species populations (Aguilar et al. 2019). Dramatic geological changes over different geological periods, such as sea level fluctuations, can connect and disconnect water systems, promote habitat integration or isolation, and spawn new habitats (Arias et al. 2021), thereby altering species distributions. For example, the effective population of the short-nosed electric eel Brachyhypopomus occidentalis (Teleostei, Gymnotiformes) expanded rapidly between the final closure of the Isthmus of Panama between 2.8 and 3.5 Myr and declined during the Pleistocene ice-interglacial cyclone (Arias et al. 2021). The dynamic change of catfish population size was also consistent with that of other catfish species, such as the freshwater Wels catfish (S. Glanis) (Ozerov et al. 2020). The period of effective population sizes declined in the electric catfish (~ 70,000–100,000 years ago) is very close to earth's history of the last interglacial period (~ 116,000–129,000 years ago) (Nascimento et al. 2022) and the great population expansion might be associated with the end of quaternary glaciation at 10,000–20,000 years ago (Clark et al. 2009; Zachos et al. 2001). As a benthic tropical freshwater fish (Fagbenro et al. 2001), M. electricus populations were at low levels after the last interglacial (Eemian interglacial, 116,000–129,000 years ago), probably a period of increased global temperatures, higher connectivity of water bodies (Krijgsman et al. 2019; Ozerov et al. 2020), and greater interaction between freshwater and seawater, which affected freshwater-dwelling electric catfish.
This work is supported by the major scientific and technological projects of Hainan Province (ZDKJ2019011) and the special funding of “Blue granary” scientific and technological innovation of China (2018YFD0900301-05). The work also received the technical support from China National Gene Bank.
Author contributions
ML, YS, GF, and HMY: conceived and designed the study; SZ, MZ, and ZZ: performed sample collection and sequencing; ML, LY, ZY, and HJY: performed assembly and annotation ML and YS: wrote the manuscript; IS, SL, GF, and all other authors revised and read the manuscript.
Data availability
The genome assembly of M. electricus has been deposited in the CNGB Nucleotide Sequence Archive (https://db.cngb.org/cnsa/) under the Project ID CNP0004026.
Declarations
Conflict of interest
The authors declare no conflict of interest.
Animal and human rights statement
No animal or human rights are involved in this article.
Open Access
This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
Aguilar C, Miller MJ, Loaiza JR, González R, Krahe R, De León LF (2019) Tempo and mode of allopatric divergence in the weakly electric fish Sternopygus dariensis in the Isthmus of Panama. Sci Rep 9:18828 doi: 10.1038/s41598-019-55336-y
Arias CF, Dikow RB, McMillan WO, De León LF (2021) De novo genome assembly of the electric fish Brachyhypopomus occidentalis (Hypopomidae, Gymnotiformes). Genome Biol Evol 13:1–7 doi: 10.1093/gbe/evab223
Avdeyev P, Jiang S, Aganezov S, Hu F, Alekseyev MA (2016) Reconstruction of ancestral genomes in presence of gene gain and loss. J Comput Biol 23:150–164 doi: 10.1089/cmb.2015.0160
Bairoch A, Apweiler R (2000) The SWISS-PROT protein sequence database and its supplement TrEMBL in 2000. Nucleic Acids Res 28:45–48 doi: 10.1093/nar/28.1.45
Bao W, Kojima KK, Kohany O (2015) Repbase Update, a database of repetitive elements in eukaryotic genomes. Mob DNA 6:11 doi: 10.1186/s13100-015-0041-9
Bauer R (1968) Untersuchungen zur Entladungstätigkeit und zum Beutefangverhalten des Zitterwelses Malapterurus electricus Gmelin 1789 (Siluroidea, Malapteruridae, Lacep. 1803). Z Vgl Physiol 59:371–402 doi: 10.1007/BF00365969
Benson G (1999) Tandem repeats finder: a program to analyze DNA sequences. Nucleic Acids Res 27:573–580 doi: 10.1093/nar/27.2.573
Bigiani A, Ghiaroni V, Fieni F (2003) Channels as taste receptors in vertebrates. Prog Biophys Mol Biol 83:193–225 doi: 10.1016/S0079-6107(03)00058-0
Birney E, Clamp M, Durbin R (2004) Genewise and genomewise. Genome Res 14:988–995 doi: 10.1101/gr.1865504
Chen Y, Chen Y, Shi C, Huang Z, Zhang Y, Li S, Li Y, Ye J, Yu C, Li Z, Zhang X, Wang J, Yang H, Fang L, Chen Q (2018) SOAPnuke: a MapReduce acceleration-supported software for integrated quality control and preprocessing of high-throughput sequencing data. Gigascience 7:1–6 doi: 10.1093/gigascience/gix120
Clark PU, Dyke AS, Shakun JD, Carlson AE, Clark J, Wohlfarth B, Mitrovica JX, Hostetler SW, McCabe AM (2009) The Last Glacial Maximum. Science 325:710–714 doi: 10.1126/science.1172873
Danecek P, Bonfield JK, Liddle J, Marshall J, Ohan V, Pollard MO, Whitwham A, Keane T, McCarthy SA, Davies RM, Li H (2021) Twelve years of SAMtools and BCFtools. Gigascience 10:1–4 doi: 10.1093/gigascience/giab008
Ding W, Zhang X, Zhao X, Jing W, Cao Z, Li J, Huang Y, You X, Wang M, Shi Q, Bing X (2021) A chromosome-level genome assembly of the mandarin fish (Siniperca chuatsi). Front Genet 12:1–15 doi: 10.3389/fgene.2021.671650
Dudchenko O, Batra SS, Omer AD, Nyquist SK, Hoeger M, Durand NC, Shamim MS, Machol I, Lander ES, Aiden AP, Aiden EL (2017) De novo assembly of the Aedes aegypti genome using Hi-C yields chromosome-length scaffolds. Science 356:92–95 doi: 10.1126/science.aal3327
Durand NC, Shamim MS, Machol I, Rao SSP, Huntley MH, Lander ES, Aiden EL (2016) Juicer provides a one-click system for analyzing loop-resolution Hi-C experiments. Cell Syst 3:95–98 doi: 10.1016/j.cels.2016.07.002
Ebbesson SOE, Donnel DO (1980) Retinal projections in the electric catfish (Malapterurus electricus). Cell Tissue Res 213:497–503 doi: 10.1007/BF00237894
Edgar RC (2004) MUSCLE: Multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res 32:1792–1797 doi: 10.1093/nar/gkh340
Enright JM, Toomey MB, Sato SY, Temple SE, Allen JR, Fujiwara R, Kramlinger VM, Nagy LD, Johnson KM, Xiao Y, How MJ, Johnson SL, Roberts NW, Kefalov VJ, Peter Guengerich F, Corbo JC (2015) Cyp27c1 red-shifts the spectral sensitivity of photoreceptors by converting vitamin A1 into A2. Curr Biol 25:3048–3057 doi: 10.1016/j.cub.2015.10.018
Fagbenro OA, Adedire CO, Aiyegbeni ML (2001) Food composition and digestive enzymes in the gut of the African electric catfish, Malapterurus electricus (Gmelin 1789) (Malapteruridae). Trop Zool 14:1–6 doi: 10.1080/03946975.2001.10531140
Feng P, Zheng J, Rossiter SJ, Wang D, Zhao H (2014) Massive losses of taste receptor genes in toothed and baleen whales. Genome Biol Evol 6:1254–1265 doi: 10.1093/gbe/evu095
Gallant JR, O’Connell LA (2020) Studying convergent evolution to relate genotype to behavioral phenotype. J Exp Biol 223:jeb213447 doi: 10.1242/jeb.213447
Gallant JR, Traeger LL, Volkening JD, Moffett H, Chen PH, Novina CD, Phillips GN Jr, Anand R, Wells GB, Pinch M, Güth R, Unguez GA, Albert JS, Zakon HH, Samanta MP, Sussman MR (2014) Nonhuman genetics. Genomic basis for the convergent evolution of electric organs. Science 344:1522–1525 doi: 10.1126/science.1254432
Goli Bi BEP, Kamelan TM, Berté S, Kien KB, Ndiaye S, Kouamelan EP (2019) The first data on the population parameters of the main fish species in manmade Lake Buyo (River Sassandra, Côte d’Ivoire). Egypt J Aquat Biol Fish 23:585–597 doi: 10.21608/ejabf.2019.34788
Götz S, García-Gómez JM, Terol J, Williams TD, Nagaraj SH, Nueda MJ, Robles M, Talón M, Dopazo J, Conesa A (2008) High-throughput functional annotation and data mining with the Blast2GO suite. Nucleic Acids Res 36:3420–3435 doi: 10.1093/nar/gkn176
Han MV, Thomas GWC, Lugo-Martinez J, Hahn MW (2013) Estimating gene gain and loss rates in the presence of error in genome assembly and annotation using CAFE 3. Mol Biol Evol 30:1987–1997 doi: 10.1093/molbev/mst100
Harris RS (2007) Improved pairwise alignment of genomic DNA. The Pennsylvania State University
Hasegawa M, Kishino H, Yano T-a (1985) Dating of the human-ape splitting by a molecular clock of mitochondrial DNA. J Mol Evol 22:160–174 doi: 10.1007/BF02101694
Hoff KJ, Stanke M (2019) Predicting genes in single genomes with AUGUSTUS. Curr Protoc Bioinforma 65:e57 doi: 10.1002/cpbi.57
Hu Y, Wu Q, Ma S, Ma T, Shan L, Wang X, Nie Y, Ning Z, Yan L, Xiu Y, Wei F (2017) Comparative genomics reveals convergent evolution between the bamboo-eating giant and red pandas. Proc Natl Acad Sci USA 114:1081–1086 doi: 10.1073/pnas.1613870114
Janetzko A, Zimmermann H, Volknandt W (1987) The electromotor system of the electric catfish (Malapterurus electricus): a fine-structural analysis. Cell Tissue Res 247:613–624 doi: 10.1007/BF00215756
Jones DT, Taylor WR, Thornton JM (1992) The rapid generation of mutation data matrices from protein sequences. Comput Appl Biosci 8:275–282
Jones P, Binns D, Chang H-Y, Fraser M, Li W, McAnulla C, McWilliam H, Maslen J, Mitchell A, Nuka G, Pesseat S, Quinn AF, Sangrador-Vegas A, Scheremetjew M, Yong S-Y, Lopez R, Hunter S (2014) InterProScan 5: genome-scale protein function classification. Bioinformatics 30:1236–1240 doi: 10.1093/bioinformatics/btu031
Kanehisa M, Goto S (2000) KEGG: kyoto encyclopedia of genes and genomes. Nucleic Acids Res 28:27–30 doi: 10.1093/nar/28.1.27
Kasahara M, Naruse K, Sasaki S, Nakatani Y, Qu W, Ahsan B, Yamada T, Nagayasu Y, Doi K, Kasai Y, Jindo T, Kobayashi D, Shimada A, Toyoda A, Kuroki Y, Fujiyama A, Sasaki T, Shimizu A, Asakawa S, Shimizu N et al (2007) The medaka draft genome and insights into vertebrate genome evolution. Nature 447:714–719 doi: 10.1038/nature05846
Katoh K, Standley DM (2013) MAFFT multiple sequence alignment software version 7: improvements in performance and usability. Mol Biol Evol 30:772–780 doi: 10.1093/molbev/mst010
Kent WJ (2002) BLAT —The BLAST -Like Alignment Tool. Genome Res 12:656–664
Kent WJ, Baertsch R, Hinrichs A, Miller W, Haussler D (2003) Evolution’s cauldron: duplication, deletion, and rearrangement in the mouse and human genomes. Proc Natl Acad Sci USA 100:11484–11489 doi: 10.1073/pnas.1932072100
Kim D, Pertea G, Trapnell C, Pimentel H, Kelley R, Salzberg SL (2013) TopHat2: accurate alignment of transcriptomes in the presence of insertions, deletions and gene fusions. Genome Biol 14:R36 doi: 10.1186/gb-2013-14-4-r36
Kim J, Farré M, Auvil L, Capitanu B, Larkin DM, Ma J, Lewin HA (2017) Reconstruction and evolutionary history of eutherian chromosomes. Proc Natl Acad Sci USA 114:E5379–E5388 doi: 10.1073/pnas.1702012114
Kim OTP, Nguyen PT, Shoguchi E, Hisata K, Vo TTB, Inoue J, Shinzato C, Le BTN, Nishitsuji K, Kanda M, Nguyen VH, Nong HV, Satoh N (2018) A draft genome of the striped catfish, Pangasianodon hypophthalmus, for comparative analysis of genes relevant to development and a resource for aquaculture improvement. BMC Genomics 19:733 doi: 10.1186/s12864-018-5079-x
Kitts PA, Church DM, Thibaud-Nissen F, Choi J, Hem V, Sapojnikov V, Smith RG, Tatusova T, Xiang C, Zherikov A, DiCuccio M, Murphy TD, Pruitt KD, Kimchi A (2016) Assembly: a resource for assembled genomes at NCBI. Nucleic Acids Res 44:D73-80 doi: 10.1093/nar/gkv1226
Krijgsman W, Tesakov A, Yanina T, Lazarev S, Danukalova G, Van Baak CGC, Agustí J, Alçiçek MC, Aliyeva E, Bista D, Bruch A, Büyükmeriç Y, Bukhsianidze M, Flecker R, Frolov P, Hoyle TM, Jorissen EL, Kirscher U, Koriche SA, Kroonenberg SB et al (2019) Quaternary time scales for the Pontocaspian domain: interbasinal connectivity and faunal evolution. Earth-Sci Rev 188:1–40 doi: 10.1016/j.earscirev.2018.10.013
Kumazawa T, Brand JG, Teeter JH (1998) Amino acid-activated channels in the catfish taste system. Biophys J 75:2757–2766 doi: 10.1016/S0006-3495(98)77719-7
Lamanna F, Kirschbaum F, Waurick I, Dieterich C, Tiedemann R (2015) Cross-tissue and cross-species analysis of gene expression in skeletal muscle and electric organ of African weakly-electric fish (Teleostei; Mormyridae). BMC Genomics 16:1–17 doi: 10.1186/s12864-015-1858-9
Lee AM, Myhre AM, Markussen SS, Engen S, Solberg EJ, Haanes H, Røed K, Herfindal I, Heim M, Saether B-E (2020) Decomposing demographic contributions to the effective population size with moose as a case study. Mol Ecol 29:56–70 doi: 10.1111/mec.15309
LeGrande WH (1981) Chromosomal evolution in North American catfishes (Siluriformes: Ictaluridae) with particular emphasis on the madtoms, Noturus. Copeia 1981:33–52 doi: 10.2307/1444039
Letunic I, Bork P (2021) Interactive tree of life (iTOL) v5: an online tool for phylogenetic tree display and annotation. Nucleic Acids Res 49:W293–W296 doi: 10.1093/nar/gkab301
Li H, Durbin R (2009) Fast and accurate short read alignment with Burrows-Wheeler transform. Bioinformatics 25:1754–1760 doi: 10.1093/bioinformatics/btp324
Li H, Durbin R (2011) Inference of human population history from individual whole-genome sequences. Nature 475:493–496 doi: 10.1038/nature10231
Li L, Stoeckert CJJ, Roos DS (2003) OrthoMCL: identification of ortholog groups for eukaryotic genomes. Genome Res 13:2178–2189 doi: 10.1101/gr.1224503
Lin JJ, Wang FY, Li WH, Wang TY (2017) The rises and falls of opsin genes in 59 ray-finned fish genomes and their implications for environmental adaptation. Sci Rep 7:1–13 doi: 10.1038/s41598-017-15868-7
Liu B, Shi Y, Yuan J, Hu X, Zhang H, Li N, Li Z, Chen Y, Mu D, Fan W (2013) Estimation of genomic characteristics by analyzing k-mer frequency in de novo genome projects. arXiv: https://doi.org/10.48550/arXiv.1308.2012
Liu D-W, Lu Y, Yan HY, Zakon HH (2016a) South American weakly electric fish (Gymnotiformes) are long-wavelength-sensitive cone monochromats. Brain Behav Evol 88:204–212 doi: 10.1159/000450746
Liu Z, Liu S, Yao J, Bao L, Zhang J, Li Y, Jiang C, Sun L, Wang R, Zhang Y, Zhou T, Zeng Q, Fu Q, Gao S, Li N, Koren S, Jiang Y, Zimin A, Xu P, Phillippy AM et al (2016b) The channel catfish genome sequence provides insights into the evolution of scale formation in teleosts. Nat Commun 7:11757 doi: 10.1038/ncomms11757
Luo R, Liu B, Xie Y, Li Z, Huang W, Yuan J, He G, Chen Y, Pan Q, Liu Y, Tang J, Wu G, Zhang H, Shi Y, Liu Y, Yu C, Wang B, Lu Y, Han C, Cheung DW et al (2012) SOAPdenovo2: an empirically improved memory-efficient short-read de novo assembler. Gigascience 1:18 doi: 10.1186/2047-217X-1-18
Manni M, Berkeley MR, Seppey M, Simão FA, Zdobnov EM (2021) BUSCO update: novel and streamlined workflows along with broader and deeper phylogenetic coverage for scoring of eukaryotic, prokaryotic, and viral genomes. Mol Biol Evol 38:4647–4654 doi: 10.1093/molbev/msab199
Mather N, Traves SM, Ho SYW (2020) A practical introduction to sequentially Markovian coalescent methods for estimating demographic history from genomic data. Ecol Evol 10:579 doi: 10.1002/ece3.5888
Miller KG, Kominz MA, Browning JV, Wright JD, Mountain GS, Katz ME, Sugarman PJ, Cramer BS, Christie-Blick N, Pekar SF (2005) The Phanerozoic record of global sea-level change. Science 310:1293–1298 doi: 10.1126/science.1116412
Moreno-Hagelsieb G, Latimer K (2007) Choosing BLAST options for better detection of orthologs as reciprocal best hits. Bioinformatics 24:319–324 doi: 10.1093/bioinformatics/btm585
Nakatani Y, McLysaght A (2017) Genomes as documents of evolutionary history: a probabilistic macrosynteny model for the reconstruction of ancestral genomes. Bioinformatics 33:i369–i378 doi: 10.1093/bioinformatics/btx259
Naruse K, Tanaka M, Mita K, Shima A, Postlethwait J, Mitani H (2004) A medaka gene map: the trace of ancestral vertebrate proto-chromosomes revealed by comparative gene mapping. Genome Res 14:820–828 doi: 10.1101/gr.2004004
Nascimento RA, Shimizu MH, Venancio IM, Chiessi CM, Kuhnert H, Johnstone H, Govin A, Lessa D, Ballalai JM, Piacsek P, Mulitza S, Albuquerque ALS (2022) Warmer western tropical South Atlantic during the Last Interglacial relative to the current interglacial period. Glob Planet Change 215:103889 doi: 10.1016/j.gloplacha.2022.103889
Ozerov MY, Flajshans M, Noreikiene K, Vasemägi A, Gross R, Flajšhans M, Noreikiene K, Vasemägi A, Gross R, Flajshans M, Noreikiene K, Vasemägi A, Gross R (2020) Draft genome assembly of the freshwater apex predator wels catfish (Silurus glanis) using linked-read sequencing. G3- Genes Genom Genet 10:3897–3906 doi: 10.1534/g3.120.401711
Parey E, Louis A, Montfort J, Guiguen Y, Roest Crollius H, Berthelot C (2022) An atlas of fish genome evolution reveals delayed rediploidization following the teleost whole-genome duplication. Genome Res 32:1685–1697 doi: 10.1101/gr.276953.122
Parker J, Tsagkogeorga G, Cotton JA, Liu Y, Provero P, Stupka E, Rossiter SJ (2013) Genome-wide signatures of convergent evolution in echolocating mammals. Nature 502:228–231 doi: 10.1038/nature12511
Sanderson MJ (2003) R8s: inferring absolute rates of molecular evolution and divergence times in the absence of a molecular clock. Bioinformatics 19:301–302 doi: 10.1093/bioinformatics/19.2.301
Schikorski T, Braun N, Zimmermann H (1992) Cytoarchitectural organization of the electromotor system in the electric catfish (Malapterurus electricus). Cell Tissue Res 269:481–493 doi: 10.1007/BF00353903
Servant N, Varoquaux N, Lajoie BR, Viara E, Chen CJ, Vert JP, Heard E, Dekker J, Barillot E (2015) HiC-Pro: an optimized and flexible pipeline for Hi-C data processing. Genome Biol 16:259 doi: 10.1186/s13059-015-0831-x
Shi P, Zhang J (2006) Contrasting modes of evolution between vertebrate sweet/umami receptor genes and bitter receptor genes. Mol Biol Evol 23:292–300 doi: 10.1093/molbev/msj028
Stamatakis A (2014) RAxML version 8: a tool for phylogenetic analysis and post-analysis of large phylogenies. Bioinformatics 30:1312–1313 doi: 10.1093/bioinformatics/btu033
Stanke M, Keller O, Gunduz I, Hayes A, Waack S, Morgenstern B (2006) AUGUSTUS: ab initio prediction of alternative transcripts. Nucleic Acids Res 34:W435–W439 doi: 10.1093/nar/gkl200
Talavera G, Castresana J (2007) Improvement of phylogenies after removing divergent and ambiguously aligned blocks from protein sequence alignments. Syst Biol 56:564–577 doi: 10.1080/10635150701472164
Tarailo-Graovac M, Chen N (2009) Using repeat masker to identify repetitive elements in genomic sequences. Curr Protoc Bioinformatics 25:4.10.1-4.10.14 doi: 10.1002/0471250953.bi0410s25
Terhorst J, Kamm JA, Song YS (2017) Robust and scalable inference of population history from hundreds of unphased whole genomes. Nat Genet 49:303–309 doi: 10.1038/ng.3748
Thomas GWC, Hahn MW (2015) Determining the null model for detecting adaptive convergence from genomic data: a case study using echolocating mammals. Mol Biol Evol 32:1232–1236 doi: 10.1093/molbev/msv013
Traeger LL, Volkening JD, Moffett H, Gallant JR, Chen PH, Novina CD, Phillips GN, Anand R, Wells GB, Pinch M, Güth R, Unguez GA, Albert JS, Zakon H, Sussman MR, Samanta MP (2015) Unique patterns of transcript and miRNA expression in the South American strong voltage electric eel (Electrophorus electricus). BMC Genomics 16:243 doi: 10.1186/s12864-015-1288-8
Wang Y, Tang H, Debarry JD, Tan X, Li J, Wang X, Lee TH, Jin H, Marler B, Guo H, Kissinger JC, Paterson AH (2012) MCScanX: a toolkit for detection and evolutionary analysis of gene synteny and collinearity. Nucleic Acids Res 40:1–14 doi: 10.1093/nar/gkr1293
Wang O, Chin R, Cheng X, Yan Wu MK, Mao Q, Tang J, Sun Y, Anderson E, Lam HK, Chen D, Zhou Y, Wang L, Fan F, Zou Y, Xie Y, Zhang RY, Drmanac S, Nguyen D, Xu C, Villarosa C et al (2019) Efficient and unique cobarcoding of second-generation sequencing reads from long DNA molecules enabling cost-effective and accurate sequencing, haplotyping, and de novo assembly. Genome Res 29:798–808 doi: 10.1101/gr.245126.118
Waterhouse RM, Seppey M, Simao FA, Manni M, Ioannidis P, Klioutchnikov G, Kriventseva EV, Zdobnov EM (2018) BUSCO applications from quality assessments to gene prediction and phylogenomics. Mol Biol Evol 35:543–548 doi: 10.1093/molbev/msx319
Wong KHY, Levy-Sakin M, Kwok PY (2018) De novo human genome assemblies reveal spectrum of alternative haplotypes in diverse populations. Nat Commun 9:3040 doi: 10.1038/s41467-018-05513-w
Woods IG, Wilson C, Friedlander B, Chang P, Reyes DK, Nix R, Kelly PD, Chu F, Postlethwait JH, Talbot WS (2005) The zebrafish gene map defines ancestral vertebrate chromosomes. Genome Res 15:1307–1314 doi: 10.1101/gr.4134305
Xu S, He Z, Guo Z, Zhang Z, Wyckoff GJ, Greenberg A, Wu C-II, Shi S, Zhang J (2017) Genome-wide convergence during evolution of mangroves from woody plants. Mol Biol Evol 34:1008–1015
Xu S, Wang J, Guo Z, He Z, Shi S (2020) Genomic convergence in the adaptation to extreme environments. Plant Commun 1:872–879 doi: 10.1016/j.xplc.2020.100117
Yang Z (2007) PAML 4: Phylogenetic analysis by maximum likelihood. Mol Biol Evol 24:1586–1591 doi: 10.1093/molbev/msm088
Yoo K-S, Lee K, Lee Y-S, Oh W-J, Kim HK (2020) Rho guanine nucleotide exchange factor 4 (Arhgef4) deficiency enhances spatial and object recognition memory. Exp Neurobiol 29:334–343 doi: 10.5607/en20049
Zachos J, Pagani H, Sloan L, Thomas E, Billups K (2001) Trends, rhythms, and aberrations in global climate 65 Ma to present. Science 292:686–693 doi: 10.1126/science.1059412
Zakon HH, Lu Y, Zwickl DJ, Hillis DM (2006) Sodium channel genes and the evolution of diversity in communication signals of electric fishes: convergent molecular evolution. Proc Natl Acad Sci USA 103:3675–3680 doi: 10.1073/pnas.0600160103
Zhang X, Sun L, Chen W, Wu S, Li Y, Li X, Zhang B, Yao J, Wang H, Xu A (2019) ARHGEF4-mediates the actin cytoskeleton reorganization of hepatic stellate cells in 3-dimensional collagen matrices. Cell Adh Migr 13:169–181 doi: 10.1080/19336918.2019.1594497
Zhao H, Xu D, Zhang S, Zhang J (2012) Genomic and genetic evidence for the loss of umami taste in bats. Genome Biol Evol 4:73–79 doi: 10.1093/gbe/evr126
Zhao H, Yang JR, Xu H, Zhang J (2010) Pseudogenization of the umami taste receptor gene Tas1r1 in the giant panda coincided with its dietary switch to bamboo. Mol Biol Evol 27:2669 doi: 10.1093/molbev/msq153
Zheng S, Shao F, Tao W, Liu Z, Long J, Wang X, Zhang S, Zhao Q, Carleton KL, Kocher TD, Jin L, Wang Z, Peng Z, Wang D, Zhang Y (2021) Chromosome-level assembly of southern catfish (Silurus meridionalis) provides insights into visual adaptation to nocturnal and benthic lifestyles. Mol Ecol Resour 21:1575–1592 doi: 10.1111/1755-0998.13338
Zhu C, Liu H, Pan Z, Cheng L, Sun Y, Wang H, Chang G, Wu N, Ding H, Zhao H, Zhang L, Yu X (2022) Insights into chromosomal evolution and sex determination of Pseudobagrus ussuriensis (Bagridae, Siluriformes) based on a chromosome-level genome. DNA Res 29:1–15 doi: 10.1093/dnares/dsac028
Zou Z, Zhang J (2015) No genome-wide protein sequence convergence for echolocation. Mol Biol Evol 32:1237–1241 doi: 10.1093/molbev/msv014
